Glass Panels for Railings and Balustrades
Send EVERMADE GLASS the panel requirements for your railing or balustrade project. Include the application, specified glass construction, support details, finished dimensions and quantities. This enquiry route focuses on the glass panels for the selected system.
For designers, contractors & glass businesses · Export supply from China
Identify the Application and Glass Supply Scope
State whether the panels are intended for a balcony, stair guard, terrace, pool fence or another barrier. Include the project location and the drawings or specification governing the glass requirement.
A panel order and a complete railing system are different scopes. List any requested fittings separately for review, and identify who is responsible for system design and installation. A similar-looking panel is not a substitute for the project’s specified construction.
Provide the Support and Fixing Details
Show how each panel is supported, including the relevant base channel, posts, clamps or point-fixing details. Identify the selected hardware or provide its fabrication drawing where it determines holes, cut-outs or edge details.
Distinguish finished glass dimensions from opening or overall system dimensions. Mark panel orientation, sloping edges and any handed or mirrored parts. Keep the drawing revision with the panel schedule.
- Panel marks, finished dimensions, units and quantities.
- Glass build-up and specified treatment for each layer.
- Support and hardware references, with holes, notches and edge details.
Keep Material Choices With the Complete Construction
For laminated panels, specify the glass layers and interlayer rather than only an overall thickness. If tempered glass or low-iron material is specified, identify that requirement with the rest of the construction.
The product guides explain the information needed for those materials and processes. They do not replace the project’s selection of glass for a particular barrier system.
State the Required Evidence and Acceptance Criteria
Include the project specification and identify the requested product documents, inspection records or system evidence. Clarify whether a requirement concerns the glass panels, their connections or the complete installed barrier.
Confirm the proposed construction and its document scope with the responsible project parties before finalising the order. A glass product report alone does not establish every performance requirement of the full railing system.
Review a Recorded UAE Fencing Supply Reference
The existing UAE supply reference records 15 mm low-iron tempered glass supplied to a building contractor for residential fencing. It is a specific supply example, not a standard construction for every railing or pool barrier.
Review the recorded facts on the tempered glass page, then send the specification and fixing details for your own project.
Organise the Panel Order and Delivery Sequence
Group quantities by panel mark and drawing revision. Identify any installation sequence, different elevations or phased deliveries that affect packing and panel identification.
Provide the destination, requested dates and packing requirements with the schedule. The proposed supply, inspection and delivery terms should refer to the same set of glass items.
Request a Railing Glass Panel Supply Review
Send the application, specified construction, support or hardware references, panel drawings, quantities, required documents and destination. Mark unresolved items so they can be discussed before quotation.
Use the form for the project summary and email drawings to info@evermadeglass.com. Attachments are sent by email; the website form does not upload files.

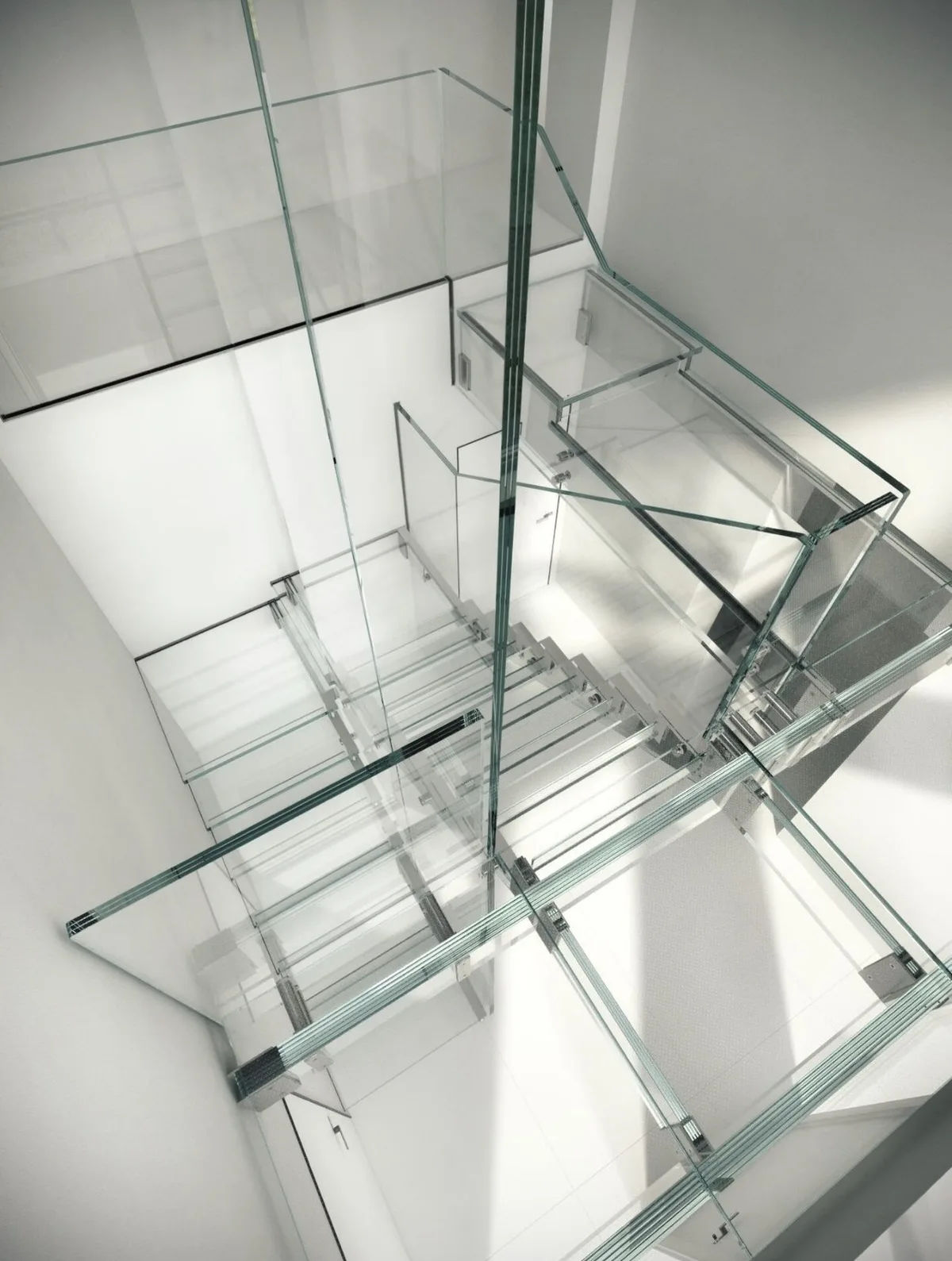

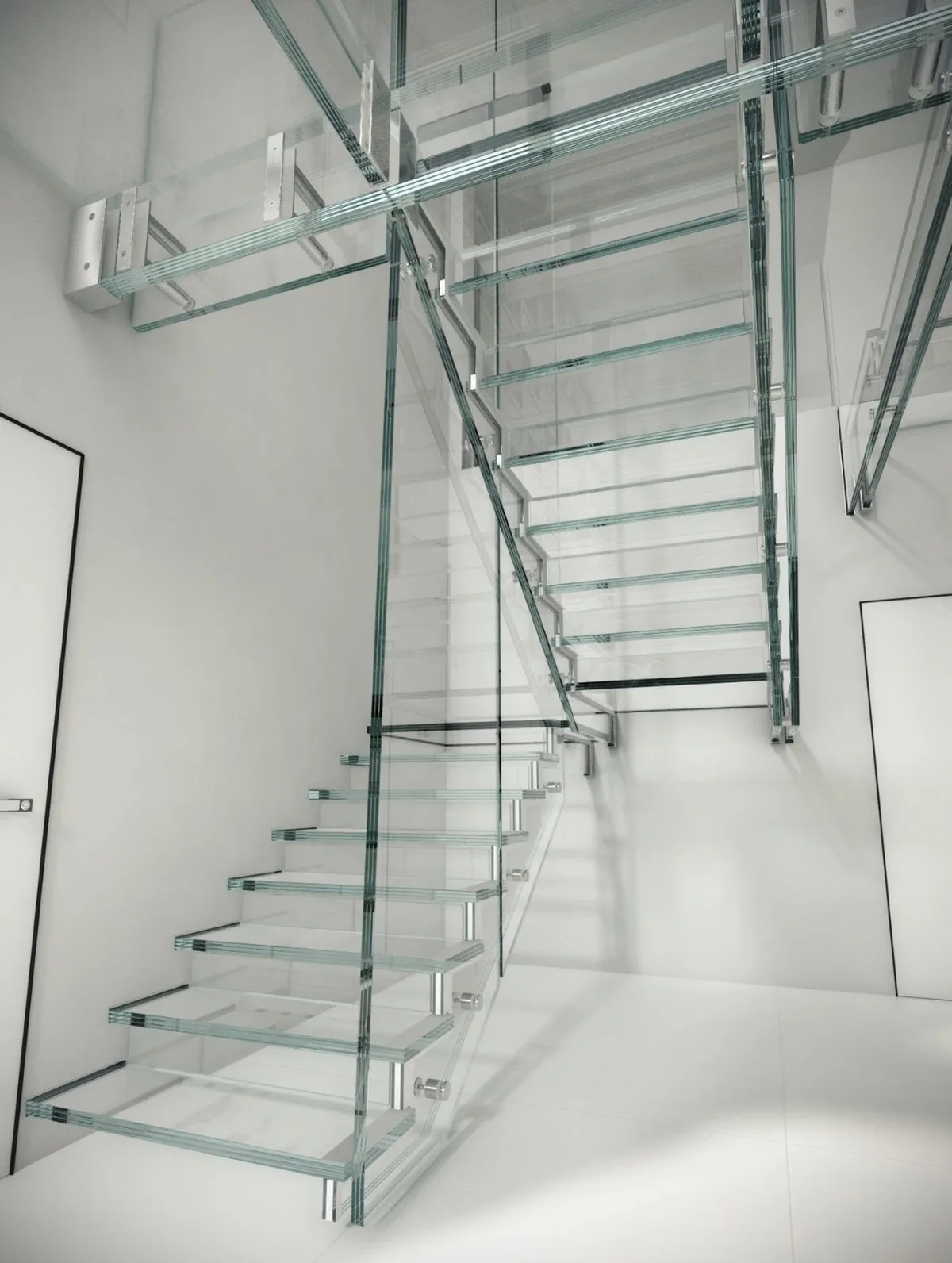

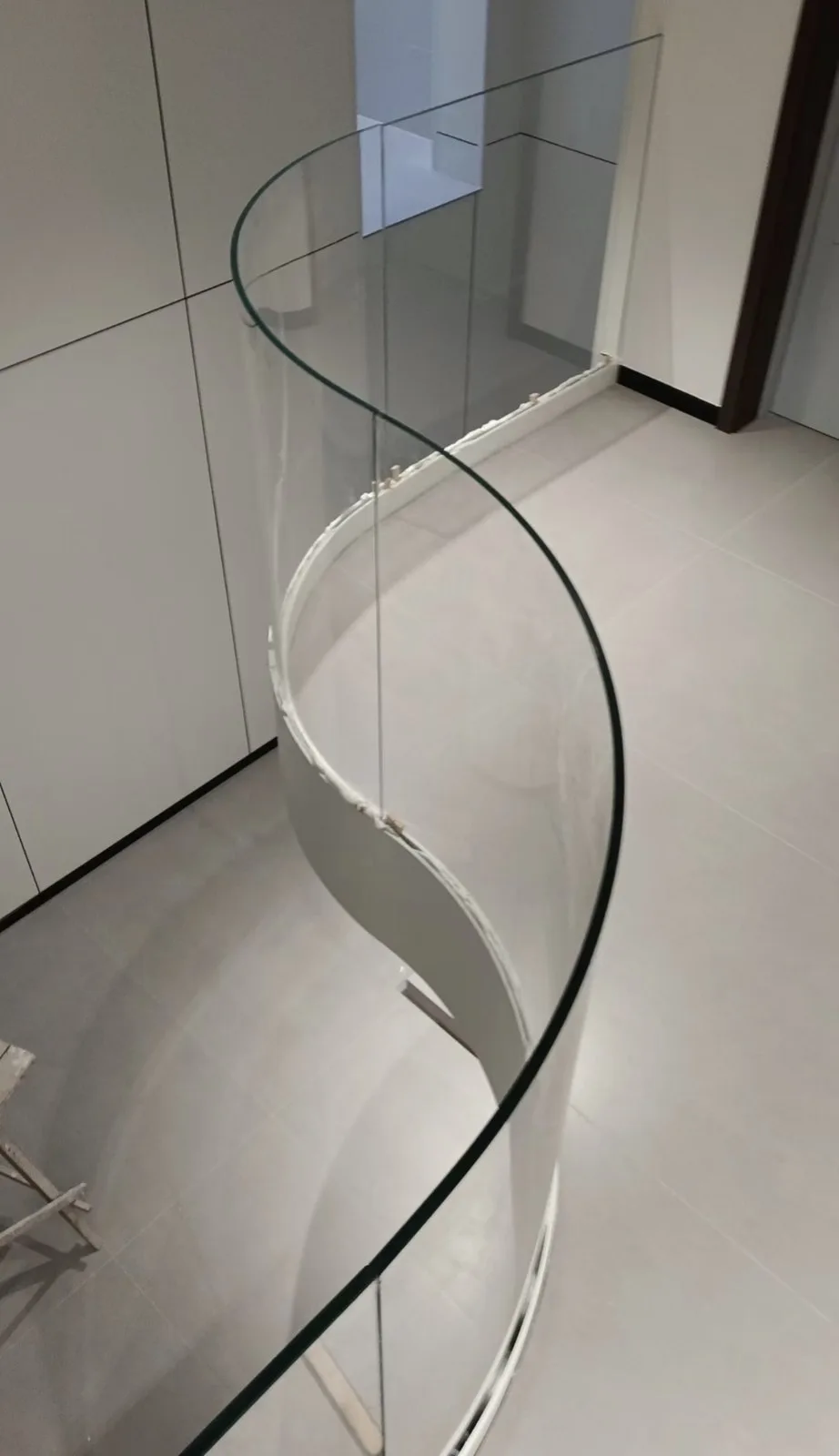

Additional Stair and Curved Railing References
Review the photographed stair and curved railing supply references. Match a new order to the specified glass construction and support design rather than copying an existing panel thickness.
Project questions
Do railing and balustrade glass need separate enquiries?
Use the terminology in your project documents and state the application. Identify the glass construction, supports and quantities rather than relying on either name as a complete specification.
Does the UAE reference define the glass for my railing?
No. It records one order. The appropriate construction and fixing details for a new project need to be confirmed against that project’s requirements.
Can I include fittings in the enquiry?
List them separately with drawings or part references. Their proposed supply and interface with the glass need review; they are not assumed to be included in a glass panel quotation.
Can this route be used for pool fencing or stair guards?
Yes, to submit the glass requirements for review. Identify the exact application and applicable project requirements. A pool barrier, a stair guard and a general fence should not be assumed to have identical system requirements.
Have a glass schedule or drawing?
Send the information you have. Include the glass type, approximate quantity and destination. We can clarify the remaining details with you.
